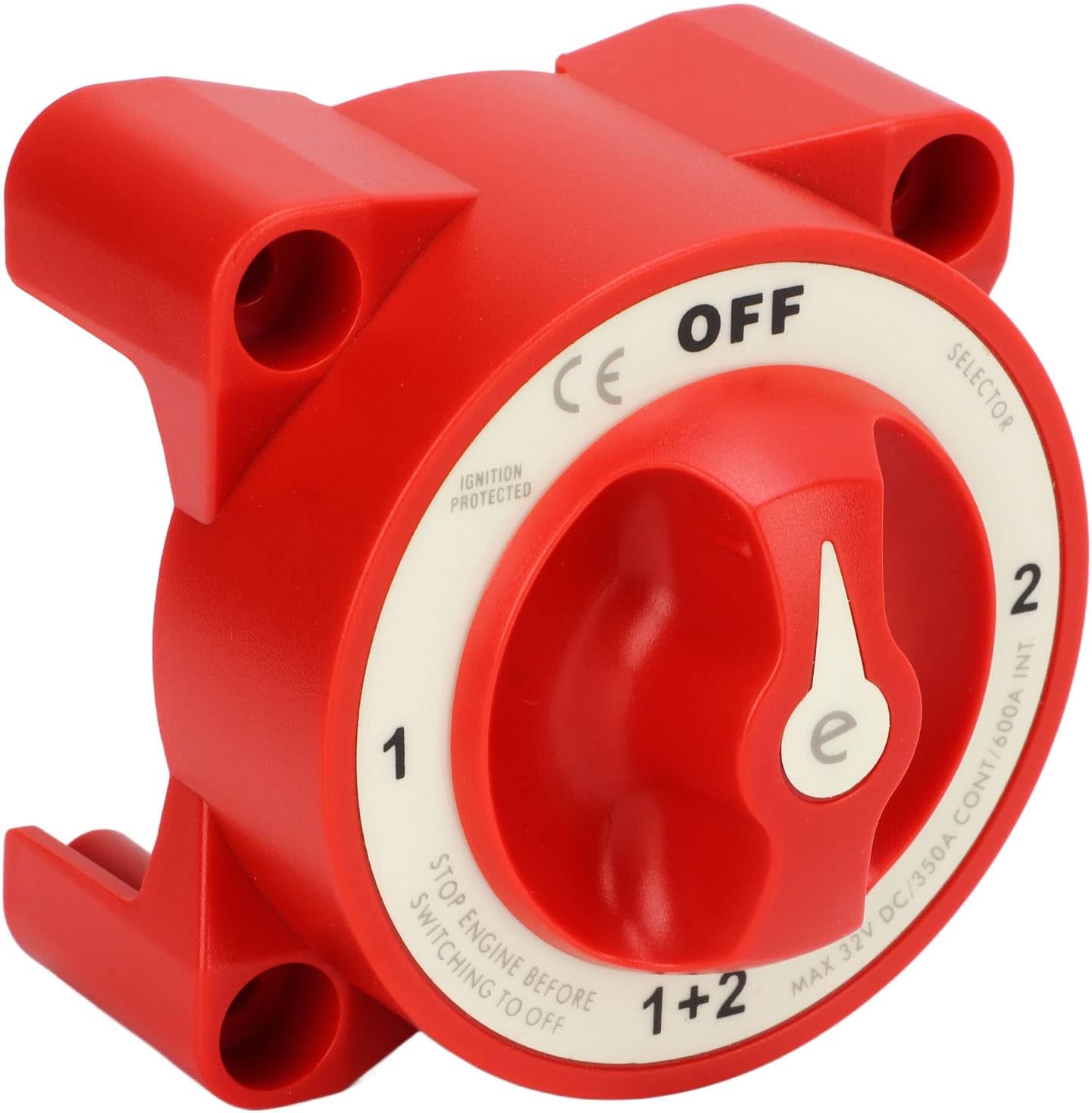

Battery Disconnect Switch 4 Gear Position Power Off Isolation Switch for Marine Boat Yacht RV

Specification:Item Type: Battery Disconnect SwitchMaterial: ABS Plastic Shell, Tinned CopperGear Position: OFF-1-2-1+2Maximum Voltage: 32V DCContinuous Rating: 350AIntermittent Rating: 600A (5 minutes)Startup Rating For 30 Seconds: 1200AWaterproof Grade: IP66Binding Post: 3pcs M10Terminal Size: 3/8in-16 (10M)Post Length: 7/8in (22.22mm), accommodates multiple cable terminalsApplication: Make before break contact design allows switching between battery packs without interrupting powerApplicable: Suitable for Marine Boat RV, large truck, modified carPackage List:1x Battery Disconnect Switch 4 x Fixing Screws

• Main Purpose: Switches isolated battery banks to all loads or combines battery banks to all loads, and includes AFD (Alternator Field Disconnect).
• Product Features: Make before break contact design allows switching between battery banks without power interruption, which has ignition protection.
• Easy Installation: Case design allows surface or rear panel mounting, with compact structure for easy and safe installation on gasoline powered boats.
• Standard Size: With 3/8in‑16 studs, which accepts 3/8in and M10 ring terminals, and 7/8in (22.22mm) stud length to accept multiple cable terminals.
• Wide Application: The battery power off switch has good practicability and high reliability, suitable for marine boat RV, large trucks, modified cars, etc.
